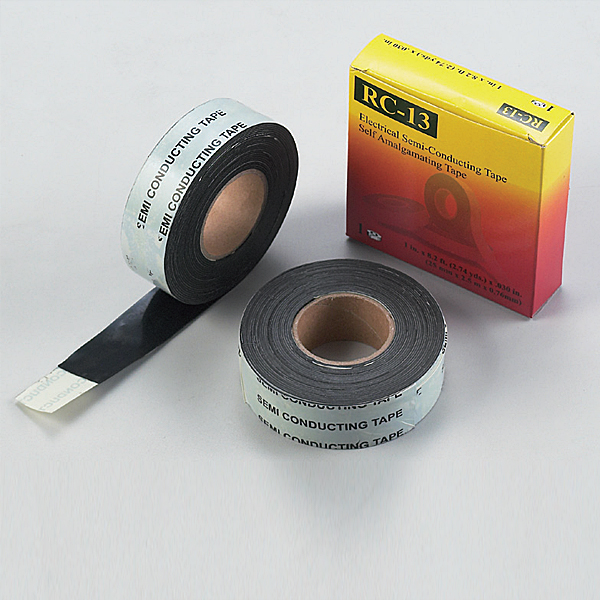

R13 Electrical Semi-Conductive Tape is a highly conformable, semi-conducting Ethylene Propylene Rubber (EPR)-based, high-voltage splicing tape, electrical tape 13 elongates easily to conform to irregular shapes and retains its conductive when stretched.
Installation techniques:
R13 tape is usually wrapped in half-lapped layers,highly elongate tape when overwrapping connectors, terminal lugs,and near edges of cable metallic shield,semi conducting cable tape and semi conducting jackets.
Note: stretching 13 tape increases it conductance and will not harm it in any way.
Caution: R13 tape is not oil resistant,it should not be used in splicing and terminating cables which contain oil or slippery compounds as part of dielectric such as PILC cable.

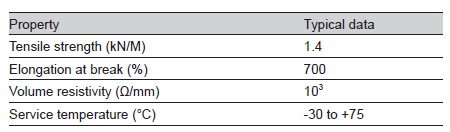

Technical Properties:
Standard Presentation:
Recommendations:
• Care should be taken to avoid direct contact between the tape and petroleum-type solvents and oils. Oils may affect the electrical
properties of the tape.
• The rolls should be stored flat on their cut edges in the original packaging. The product must be protected from dust, heat, moisture,
direct sunlight and solvent fumes. Storage temperature between +10°C and +35°C. Under these conditions, the storage life of the
tape in a temperate climate will be at least two year.
