Operating Instructions for ZPV36 Series Relay-1a

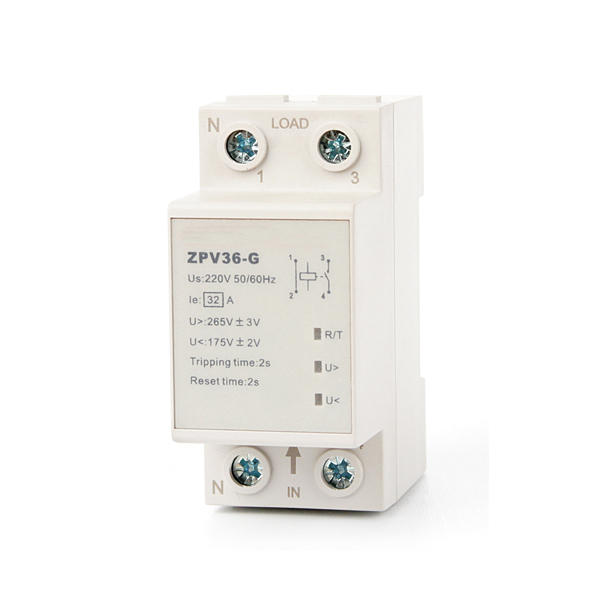

Operating Instructions for ZPV36 Series Relay
This product contains the following details
General

Function Features :

Controls its own supply voltage(True RMS measurement).
Protection against over-voltage, under-voltage, phase failure,asymmetry and phase sequence is available.

Voltage measurement accuracy <=1%(True RMS measurement).
The user can set the voltage value and the delay time by the knob.
Can realize the automatic start and automatic reset delay

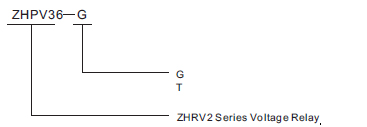

Model and Connotation

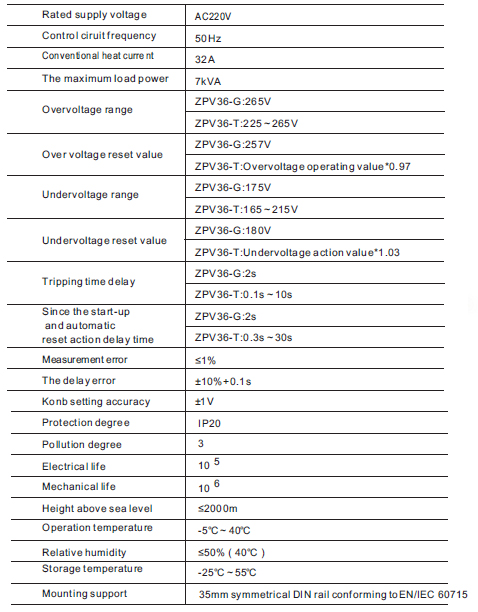

Technical Parameters

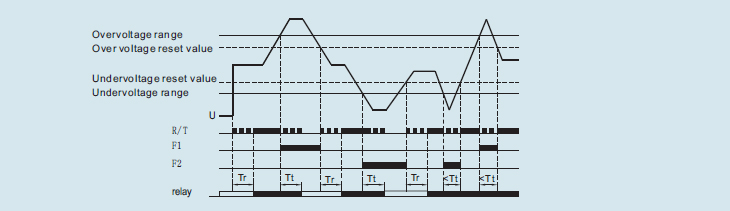

Function diagram

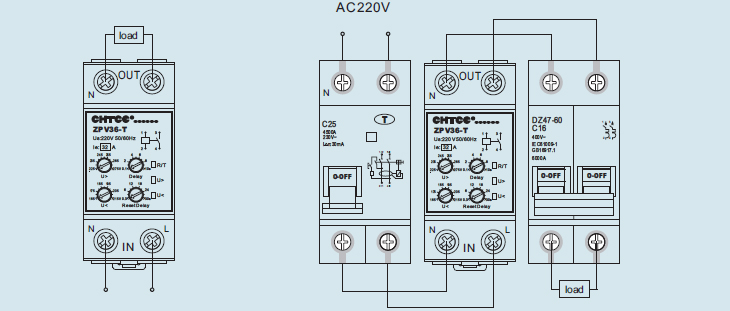

Wiring Diagram

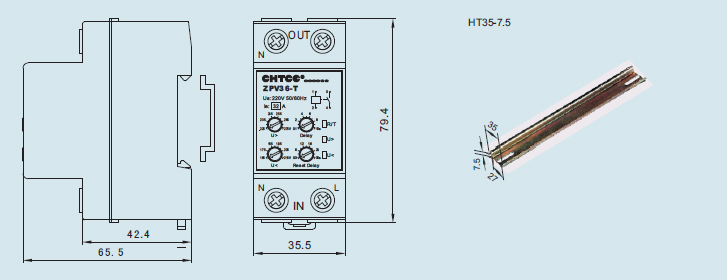

Overall and Mounting Dimensions (mm)
