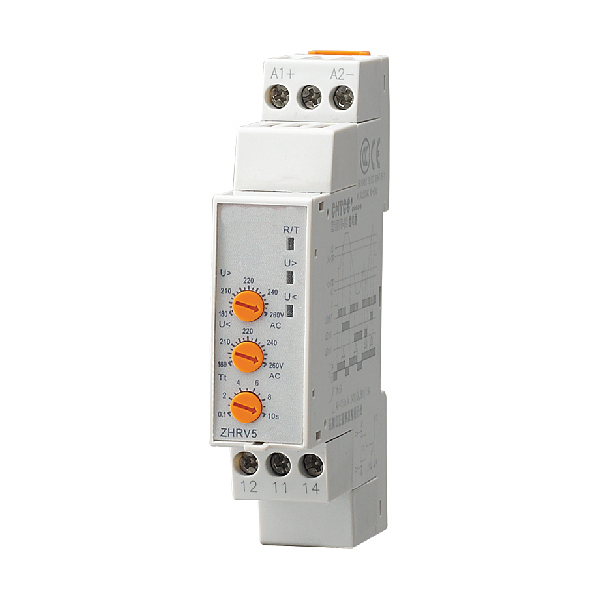

Operating Instructions for ZHRV5 Series Relay Single-phase voltage control relay
Print this page
Fav this page
E-mail us: elsine@elsine.cn
Skype: sales.frank
This product contains the following details
Applications
Protect electrical equipment and motors from over-voltage and
under-voltage.
Normal/emergency power supply switching.
Function Features :
Controls its own supply voltage(True RMS measurement).
Voltage measurement accuracy <1%.
Control status is indicated by a LED.

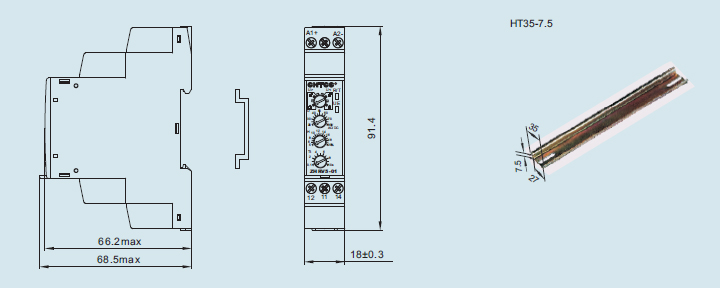

Designed for clip-on mounting on rail.

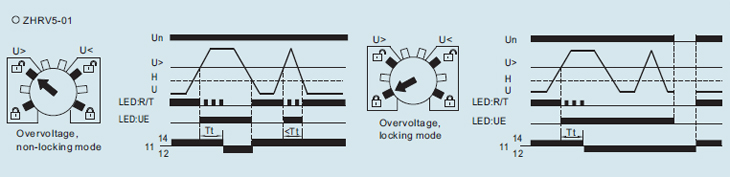

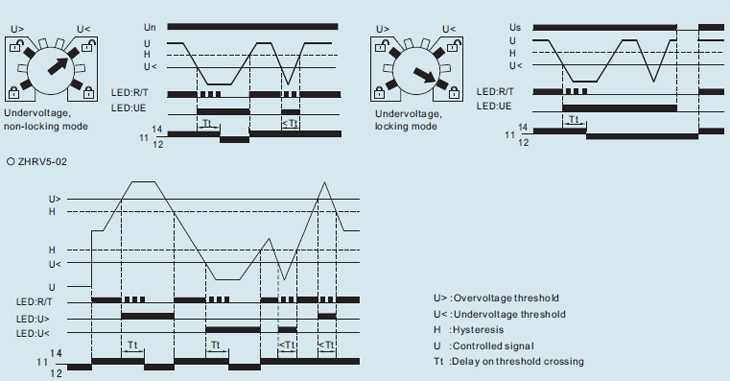

User may select operation mode through knob.
Measuring frequency range:45Hz-65Hz,DC.
18mm wide.

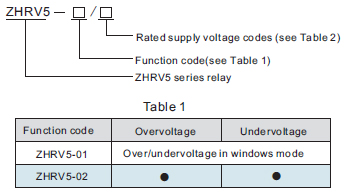

Model and Connotation
