Applications

Control for connection of moving equipment (site equipment,agricultural
equipment, refrigerated trucks).
Control for protection of persons and equipment against the consequences
of reverse running.
Normal/emergency power supply switching.
Protection against the risk of a driving load (phase failure).

Function Features :

Controls its own supply voltage(True RMS measurement).
Set 8-level rated operating voltage through knob.
Voltage measurement accuracy <1%.
Control status is indicated by a LED.

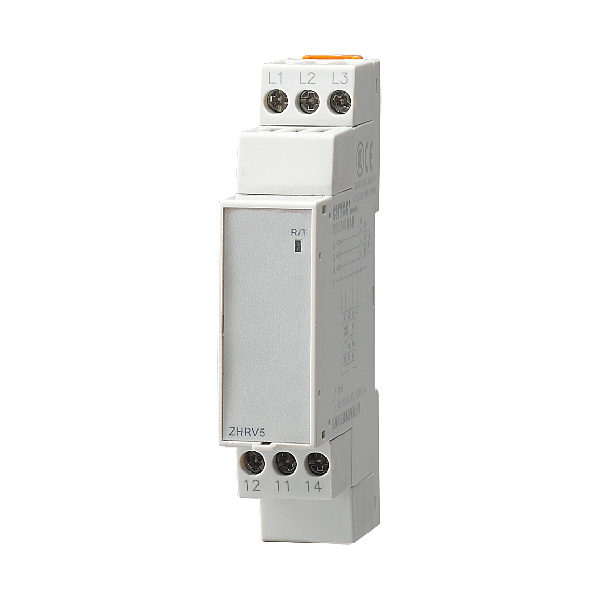

The relays are designed for clip-on mounting on rail.
Measuring frequency range:45Hz-65Hz,DC.

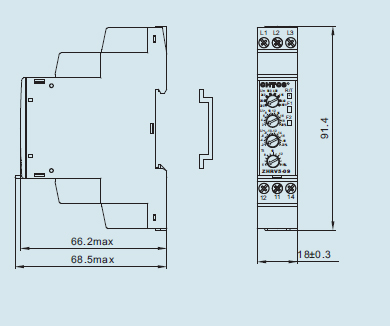

The relay is only 18mm wide.

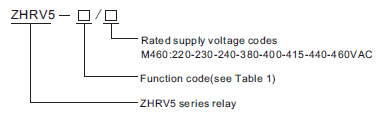

Model and Connotation
