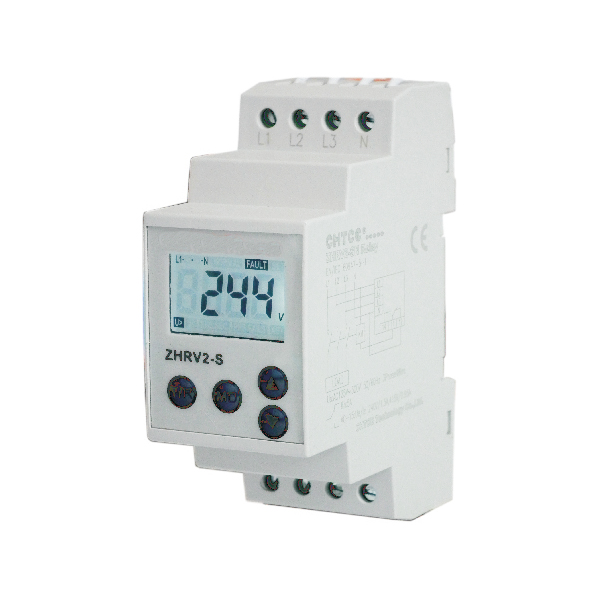

Operating Instructions for ZHRV2 Series Relay
Print this page
Fav this page
E-mail us: elsine@elsine.cn
Skype: sales.frank
This product contains the following details
Function Features :

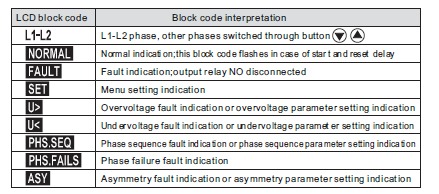

Voltage value and fault message displayed through LCD.
Protection against over-voltage, under-voltage, phase failure,
and phase sequence is available.
Protection parameters are set through keys, and the protection
function can be turned on and off freely.
Voltage measurement accuracy <=1%(True RMS measurement).
Measurement frequency 45Hz~65Hz.
Three-phase voltage value query through keys.
Testing and manual reset can be conducted through keys.
asymmetry
Loss of neutral.

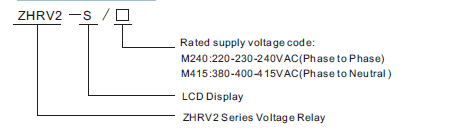

Model and Connotation

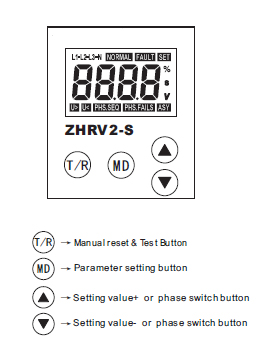

Panel Diagram
