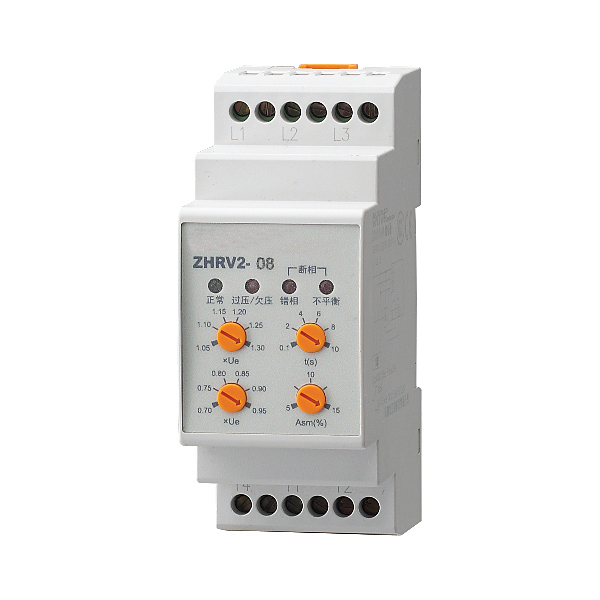

Operating Instructions for ZHRV2 Series Relay
Print this page
Fav this page
E-mail us: elsine@elsine.cn
Skype: sales.frank
This product contains the following detailsApplications
Control for connection of moving equipmensite (site equipment,agricultural equipment, refrigerated trucks).
Control for protection of persons and equipment against the
consequences of reverse running.
Protection against the risk of a driving load (phase failure).
Normal/emergency power supply switching.
Function Features :
Controls its own supply voltage(True RMS measurement).
Loss of neutral.
Control status is indicated by a LED.
Voltage measurement accuracy <=1%.
Measuring frequency :50/60Hz.

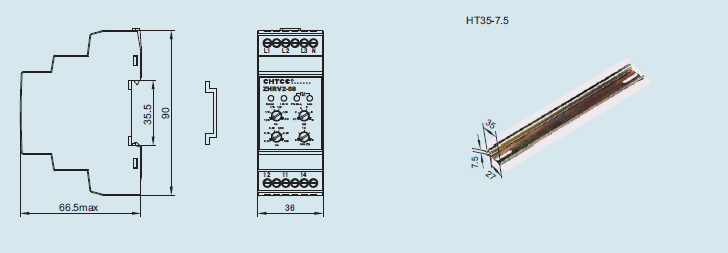

The relays are designed for clip-on mounting on rail

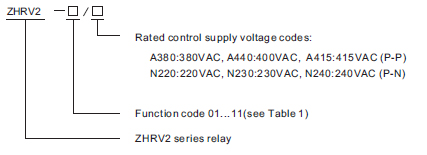

Model and Connotation
