Operating Instructions for ZHRT1 Series Time Relay
Print this page
Fav this page
E-mail us: elsine@elsine.cn
Skype: sales.frank
This product contains the following detailsApplications
Applied to the corridor electrical control circuit, connected by a
predetermined time or break the circuit to delay turn off lighting ,
and indicates that the circuit state.
Function Features :

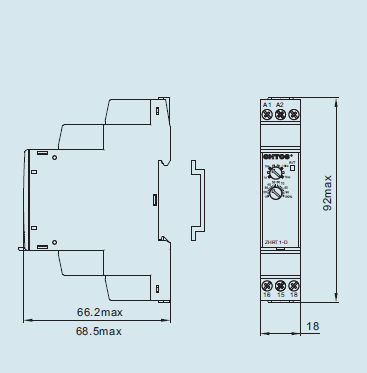

Compact in size with a width of only 18mm.
The range 0.1s to 600s-capacitor powered.

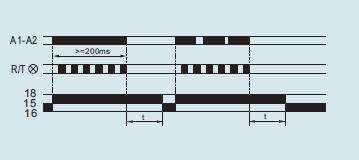

True Delay on Release.
LED indicator lamp indicates working states.
Capable of being mounted onto 35mm symmetric DIN rail.

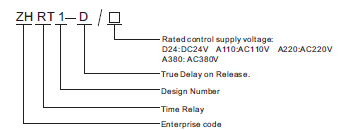

Model and Connotation
