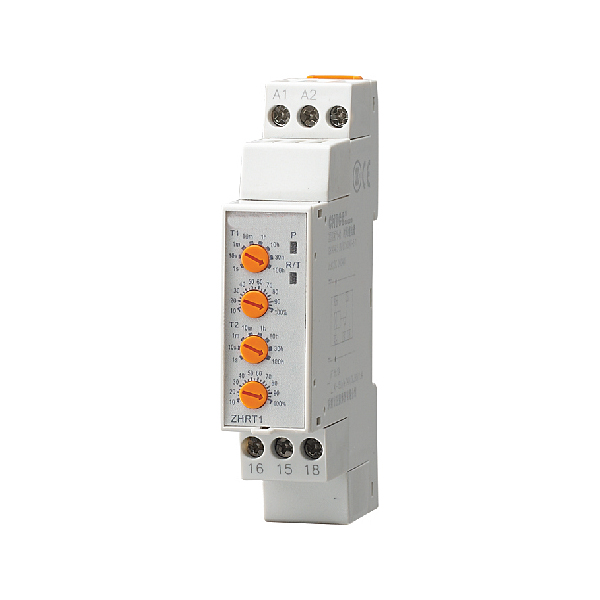

Operating Instructions for ZHRT1 Series Time Relay
Print this page
Fav this page
E-mail us: elsine@elsine.cn
Skype: sales.frank
This product contains the following detailsApplications
Applied to the electrical control circuit as a delay control and instructions.
Function Features :

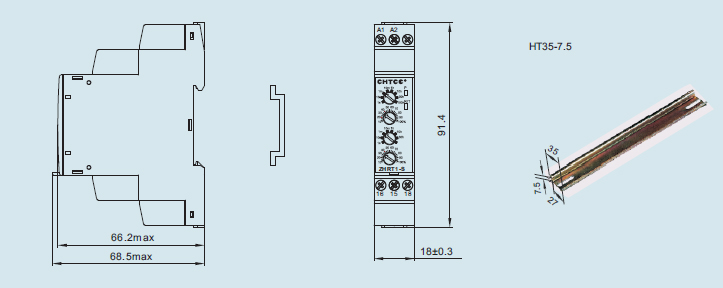

Compact in size, with a width of only 18mm that can be mounted
onto 35mm symmetric DIN rail.

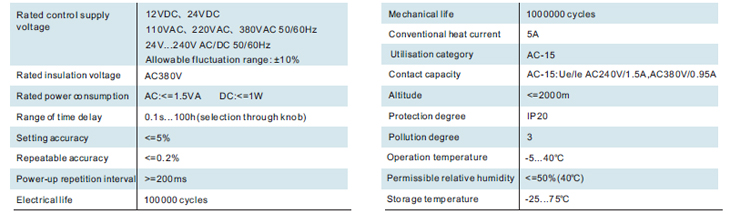

A wide time delay range of 0.1s...100h.
Repeatable accuracy <=0.2%.
Built-in high-performance microcontroller with strong resistance to interference
and high reliability.
Various rated supply voltage specifications available.
LED indicator lamp indicates “power ON” and “time delay” states.

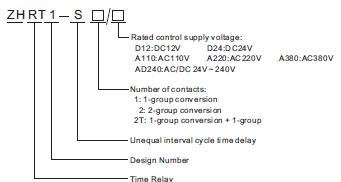

Model and Connotation
