Industrial control systems, air-conditioning system
Applied to the electrical control circuit, connected by a predetermined
time or breaking the circuit, and indicates that the circuit status.
Function Features :

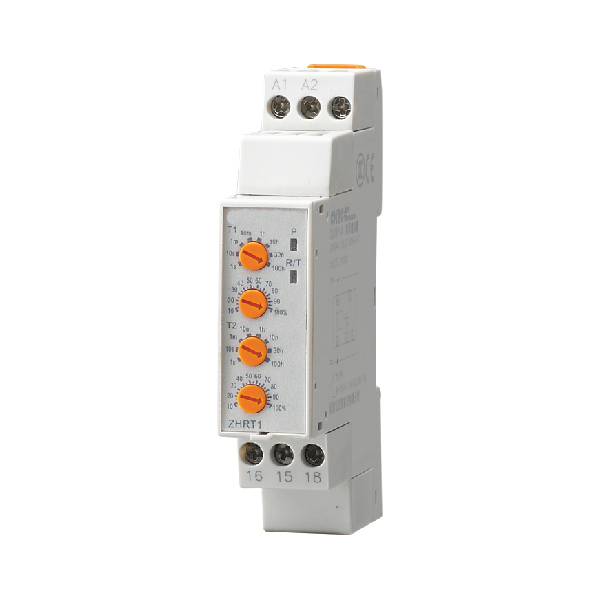

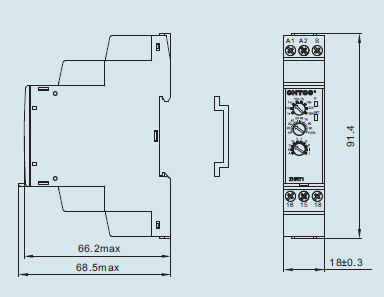

Compact in size, with a width of only 18mm that can be mounted
onto 35mm DIN rail.
A wide time delay range of 0.1s...100h.
Repeatable accuracy <=0.2%.
Built-in high-performance microcontroller with strong resistance
to interference and high reliability.
Various rated supply voltage specifications available.
LED indicator lamp indicates “power ON” and “time delay” states.
