Applications
For civilian use water tower, reservoir of water level control

 Function Features :

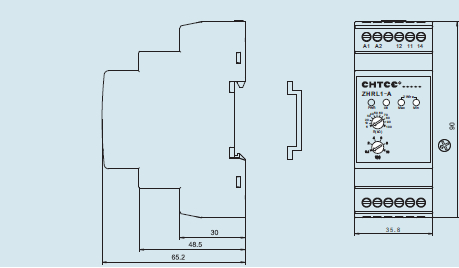

Modularization design, width: 36mm;
Sensitivity:5kΩ~100kΩ,adjustable,applicable for various liquids;

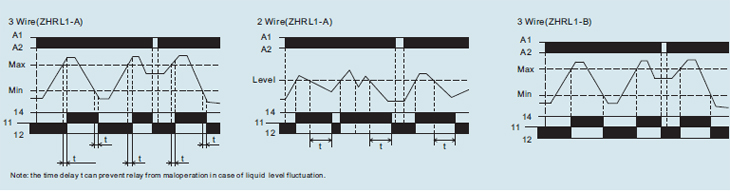

With adjustable operation delay to prevent liquid from fluctuating;

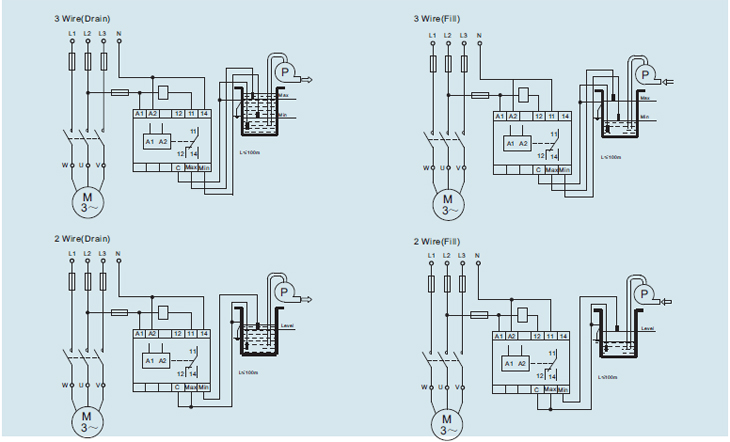

Two operating modes available: bipolar probe and tripolar probe;
LED indicator indicates the state of water level;
Usable for water supply and drainage;
Both bolt installation and guide-rail installation realized

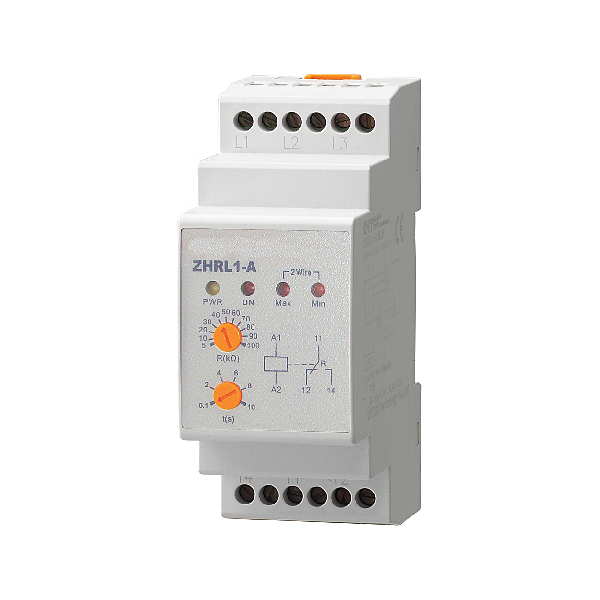

Operating Instructions for ZHRL1 Liquid Level Relay

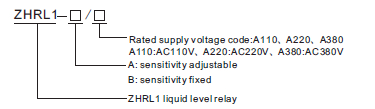

 Model and Connotation
