Applications

Industry euipment,automatic systems.
star-delia dtarting...

 Function Features :
Super wide current setting range. Adjustable ratio of CT. display
the true value of the second straight-through current
Built-in high performance microprocessor; strong anti-interference
capability and high reliability
Current display accuracy≤2%
Inverse time limit/definite time limit options
Phase failure, phase unbalance, over loading, rotation blockage and
blocking protection functions
Three phases current value could be inquired; set the protection
parameters by pressing the keys.
No-voltage release function, preventing the power input failure of the
protector Novel appearance.
Installed on the 35mm standard guide rails

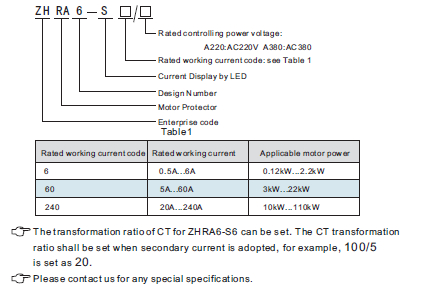

Model and Connotation
